19 April 2018

Client: Welsh Government

JV design partners: Atkins and CH2M

Services: Complex delivery

The A465 provides a vital east-west connection to, from and between the heads of the South Wales Valleys. The new road passes through a heavily protected environment within the Brecon Beacons National Park.

Key benefits

  1. Winners of the Gold International Green Award
  2. 24,000 trees planted to date, with 72,000 to be planted in total
  3. 36+ hectares of land was acquired for planting new trees
  4. Translocation of a very rare Welsh Whitebeam tree

A465 Heads of the Valleys fly through published by Welsh Government





We are committed to protecting the environment and leaving a lasting legacy of enhanced biodiversity on our contracts. Our A465 Heads of the Valleys contract is an excellent example of how we are meeting this commitment, with the team winning a Gold International Green Award for their dedication.

Our team receiving the Gold International Green Award



The highways scheme in South Wales is being delivered for the Welsh Government, improving the A465 Heads of the Valleys Road between Gilwern and Brynmawr, upgrading from a single three-lane carriageway to dual two-lane carriageway.

The scheme winds its way through the Clydach Gorge which located in the Brecon Beacons National Park, passing through the Usk Bat Sites Special Area of Conservation (SAC – the highest order of protected ecological site under European legislation) and Mynydd Llangatwg SSSI, renowned for an extensive karst limestone cave system, part of which passes directly under the road, allowing each passing car overhead to be easily heard!

Two new permanent bat crossings have been installed in addition to pre-existing road subways, which are being retained and transformed into specialised bat roosts. Bat monitoring data during 2017 found that the new crossings are well used by the bat population, despite the road still being under construction with overall numbers suggesting an increase during the construction phase.

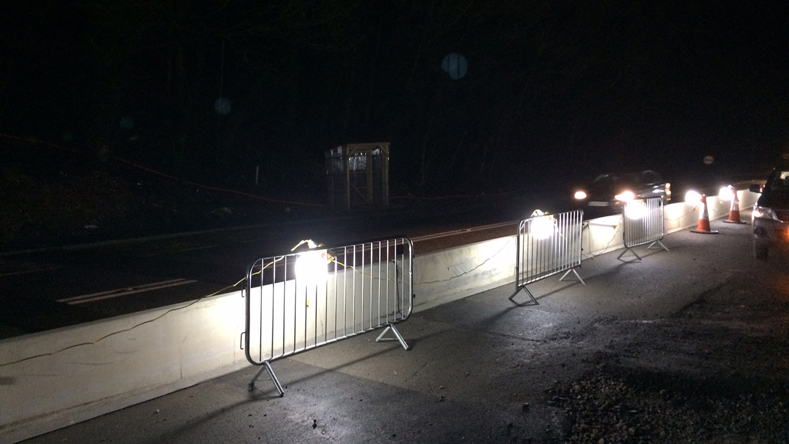

During construction of the A465 Section 2 permanent lighting columns had to be removed for work to proceed. This raised concerns that Lesser Horseshoe bats would then fly directly across the carriageway, resulting in a number of fatalities as they are used to the lights being in position. To prevent this a series of temporary lighting columns which are very mobile were installed that are designed to a specific lux level to deter bats from crossing the road whilst ensuring road users are not affected by glare.

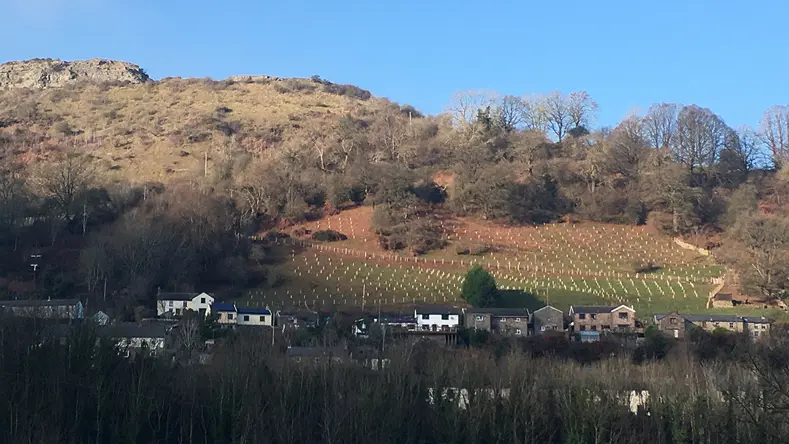

The team successfully translocated a very rare (100 in existence) Welsh Whitebeam tree using innovative techniques to move the tree away from the site, to locally acquired land where the tree is being nurtured and monitored. An additional 36 hectares of land located strategically around the gorge was acquired for the planting of several hundred native Beech seedlings, propagated from within a National Nature Reserve. This is assisting the team to protect and conserve the native provenance of the locality. Once planting has finished, over 72,000 trees will have been planted throughout the duration of this contract, over 12,000 of which were planted at the earliest opportunity.

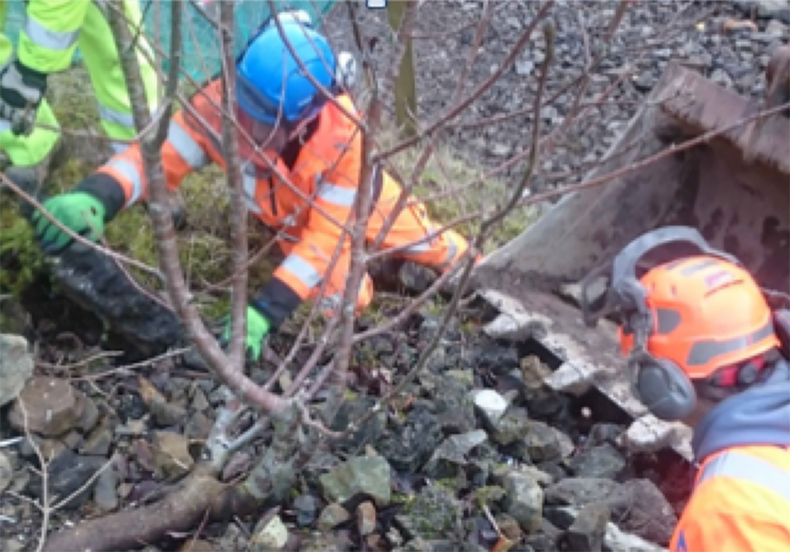

Translocation of Welsh Whitebeam



A range of bespoke artificial bat hibernaculas are being created throughout the length of the scheme, whilst felled trees are retained to provide habitats for insects, reptiles and small mammals.
